Shellngn with Nginx and Let's Encrypt for HTTPS

Shellngn with Nginx and Let's Encrypt for HTTPS

This is a guide to show you how to run Shellngn with Nginx and generate HTTPS certificates with Let's Encrypt in 4 easy steps.

Step 1: Create a docker-compose.yaml file with the following content

Make sure to replace example.com with your domain and set your email address

docker-compose.yaml (click to download)
services:
  shellngn:
    container_name: shellngn
    image: shellngn/pro
    volumes:
      - './shellngn-data/:/home/node/server/data'
  nginx-verify:
    container_name: nginx-verify
    restart: unless-stopped
    image: nginx
    ports:
      - '80:80'
    volumes:
      - './nginx-verify.conf:/etc/nginx/nginx.conf'
      - './certbot/www:/var/www/certbot'
  nginx:
    container_name: nginx
    restart: unless-stopped
    image: nginx
    ports:
      - '443:443'
    volumes:
      - './nginx.conf:/etc/nginx/nginx.conf'
      - './certbot/conf:/etc/letsencrypt'
  certbot:
    image: certbot/certbot
    container_name: certbot
    volumes:
      - './certbot/conf:/etc/letsencrypt'
      - './certbot/www:/var/www/certbot'
    command: >-
      certonly --webroot -w /var/www/certbot --force-renewal --email admin@example.com -d example.com --agree-tos

Step 2: Create a nginx.conf file with the following content

Replace example.com with your domain

nginx.conf (click to download)
events
{
  # worker_connections  1024;
}

http
{
  server_tokens off;
  charset utf-8;

  server
  {
    listen 443 ssl http2;
    # use the certificates
    ssl_certificate /etc/letsencrypt/live/example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;
    server_name example.com;
    root /var/www/html;
    index index.php index.html index.htm;

    location /
    {
      proxy_pass http://shellngn:8080/;
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection 'upgrade';
      proxy_set_header Host $host;
      proxy_cache_bypass $http_upgrade;
    }
  }
}

Step 3: Create a nginx-verify.conf file

This nginx configuration will allow the certbot to verify ownership of your domain.

nginx-verify.conf (click to download)
events
{
  # worker_connections  1024;
}

http
{
  server_tokens off;
  charset utf-8;

  # always redirect to https except for acme challenge
  server
  {
    listen 80 default_server;

    server_name _;

    location ~ /.well-known/acme-challenge/
    {
      root /var/www/certbot;
    }

    location /
    {
      return 301 https://$host$request_uri;
    }
  }
}

Step 4: Run docker-compose

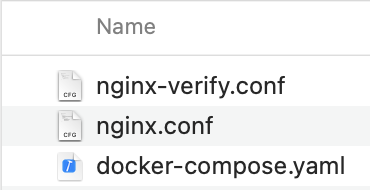

At this stage you should have 3 files in the same folder.


All you have to do now is run the following command
docker-compose up
you should now be able to access Shellngn with your domain (https://example.com).

Optional step: Setup a cron job

A certificate has a lifetime of 90 days, and it is recommended to update them after a timespan of 60 days. Therefore, you need to rerun the certbot container every 60 days to renew the certificates. You can do this by using crontab.

A crontab can be created on linux systems by running:
crontab -e
And adding a line with the following structure:
0 5 1 */2 *  /usr/local/bin/docker-compose up -f /var/docker/docker-compose.yml certbot
The command means: Run docker-compose up -d at 5 am on the first day every 2nd month.
